YTTRIUM

Until about 20 years ago, most scientists had not heard of it, other than vaguely noting where it was in the periodic table, under scandium and above lanthanum. Some people might just have known that it was one of 4 chemical elements named after the small Swedish town of Ytterby, along with ytterbium, erbium and terbium.
Then in 1986 two scientists working at IBM in Zurich, Georg Bednorz and Karl Müller, found that lanthanum barium copper oxide became superconducting at what was then almost a record high temperature, 35 degrees above absolute zero. In other words, below minus 238°C the compound's electrical resistance disappeared.
Bednorz and Müller won the Nobel Prize for Physics in 1987 for this discovery. Prompting other scientists to dust off their Periodic Tables, and try switching the lanthanum portion for other similar metals. Two American professors, Maw-Kuen Wu and Paul Chu, together with their research groups at the University's of Alabama and Houston, studied yttrium barium copper oxide. It has the formula YBa2Cu3O7 and is often called YBCO for short. They found that it became superconducting 95 degrees below absolute zero (-178 ºC).
This may not seem much of a temperature difference, but it meant that YBCO could be kept in the superconducting state using liquid nitrogen, rather than the much more expensive liquid helium. This has inspired lots more studies over the past 20 years. The ultimate objective, the Holy Grail, is to find a material that would superconduct at room temperature, but no one has got there yet.
There are many possible applications for YBCO; for example MRI scanners could be made to operate more cheaply at a higher temperature using liquid nitrogen coolant. At present, though, there are technical problems preventing these commercial applications. One is that in order to superconduct at 95K, the YBCO has to be slightly oxygen-deficient, to have just a bit less than the seven oxygen atoms per yttrium atom. The exact amount is crucial, and tricky to achieve.
Other problems include making the YBCO in the right state; a lot of research is going into making thin films of it and finding a way of making it into a continuous wire, rather than just an assembly of crystals packed together that are unable to conduct decent currents. Investigators are looking into depositing YBCO on top of flexible metal wires, and research into this continues.
Apart from this, there are lots of everyday applications for yttrium compounds In its compounds yttrium is always present as the yttrium three plus ion, which means that it is colourless and has no unpaired electrons; therefore it does not have any interesting magnetic or spectroscopic properties of its own. The up side of this is that yttrium compounds make very good host materials for other lanthanides.
The most familiar application lies in the red phosphor in cathode ray tubes, as used in traditional colour TV sets. This is made of yttrium oxysulphide, Y2O2S containing a small amount of trivalent europium ions. Similarly, yttrium hosts are often used to accommodate terbium ions, which are green phosphors. Such materials are used in the "cool white" fluorescent lamps.
Yttrium aluminium garnet, also known as YAG, is a very important synthetic mineral. It is used to make hard, artificial diamonds, which sparkle just like the real ones. What is more, by introducing small quantities of lanthanide ions, materials with a range of useful properties can be made. Introduce a small amount of cerium for example, and you have a good yellow phosphor. Or add 1 % of neodymium to YAG and you get the most widely used solid-state laser material. And erbium gives you an infrared laser.
Yttrium also finds use in fuel cells for powering cars and buses, computers and digital phones and, potentially, buildings. A small amount of yttrium oxide is added to zirconium oxide to make what is known as yttria-stabilized zirconia (also called YSZ). That has the unusual property of conducting oxide ions, making it very useful in these fuel cells. YSZ is also used to make the lambda sensors fitted to the exhaust sytem of your car. These monitor the amount of oxygen in the exhaust gases and sends feedback to give the best air-fuel mixture into the engine.

In marine energy systems, reliability is not a marketing feature.It is a survival requirement.Saltwater, vibration, humidity, and long deployment cycles create one simple rule:Material stability determines system safety.Yet in many discussions about batteries today, attention is often directed toward metrics such as energy density, charging speed, or cost per kilowatt-hour. These metrics matter—but in marine environments, they are rarely the first priority.Engineers designing power systems for yachts, offshore equipment, and marine infrastructure often begin from a different question:What happens when something goes wrong?The Ocean Is an Extreme Engineering EnvironmentMarine systems operate in conditions that challenge almost every component of an electrical system.Saltwater is highly corrosive. Humidity penetrates seals and connectors. Vibration from waves and engines stresses structural components continuously.Unlike many land-based systems, marine equipment is often expected to operate for long periods without easy access for repair or replacement.When failures occur at sea, they are not just inconvenient—they can quickly become safety issues.Because of this, marine engineering has traditionally followed a conservative principle:Prioritize materials and structures that remain stable over long periods of real-world exposure.In battery systems, this principle becomes especially important.Stability Begins at the Material LevelBattery safety is often discussed in terms of external control systems:Battery Management Systems (BMS) Monitoring sensors Software-based protectionThese systems are essential, but they are not the foundation of safety.The foundation lies in the materials themselves.If the cathode, electrolyte, binder, and structural components are inherently stable, then the entire system becomes more tolerant to real-world stress conditions such as:Temperature fluctuations Mechanical vibration Aging over time Unexpected electrical eventsIf the materials themselves are unstable, no amount of monitoring can fully eliminate risk.In engineering terms, intrinsic stability always precedes external protection.Why Marine Applications Expose Weak DesignsMarine environments tend to reveal weaknesses that might remain hidden in controlled laboratory conditions.A battery chemistry that performs well in short-term performance tests may still face challenges when exposed to:Long-term humidity cycles Salt corrosion Wide temperature swings between day and night Continuous vibration over years of operationIn such environments, the question is not simply whether a battery works today.The question is whether it remains stable after five, ten, or even twenty years of deployment.That is why many marine engineers pay close attention to material-level design decisions, including:Electrode chemistry stability Electrolyte behavior under temperature variation Mechanical strength of the cell casing Resistance to corrosion in humid and saline environmentsThese factors rarely appear in marketing brochures—but they define real-world reliability.Safety Is a Structural DecisionWhen discussing safety in energy storage, it is tempting to focus on dramatic events such as thermal runaway or battery fires.But in engineering practice, safety is rarely determined by a single moment.Instead, it is determined by the accumulation of design decisions made long before deployment.Choices about:Material chemistry Cell architecture Mechanical protection Thermal managementAll contribute to whether a system remains stable when exposed to unpredictable real-world conditions.In marine systems especially, safety is not simply a feature.It is a structural property of the entire design.From Laboratory Metrics to Real-World ReliabilityThe energy storage industry is evolving rapidly, and innovation in battery chemistry continues to expand what is possible.However, as battery technologies move into critical infrastructure environments—marine systems, grid storage, robotics, and heavy industry—the evaluation criteria must evolve as well.Performance metrics are important.But in high-consequence environments, engineers often prioritize something less visible:Predictable behavior over long operational lifetimes.This is why material-level stability remains one of the most important—and sometimes most overlooked—foundations of safe energy systems.Looking AheadIn the next article, I will discuss another common misunderstanding in battery design:Why safety and longevity are often more important than energy density in real-world energy systems.Understanding this trade-off is essential for anyone working with batteries beyond consumer electronics.A Note from Winston BatteryAt Winston Battery, many of our design decisions—from large-format prismatic cells to corrosion-resistant plastic casings—have historically been guided by one principle:Engineering for stability first.Especially in marine and infrastructure environments, long-term reliability begins with materials that remain stable under real-world conditions.Because in the ocean—and in energy infrastructure—failure is not just a statistic.

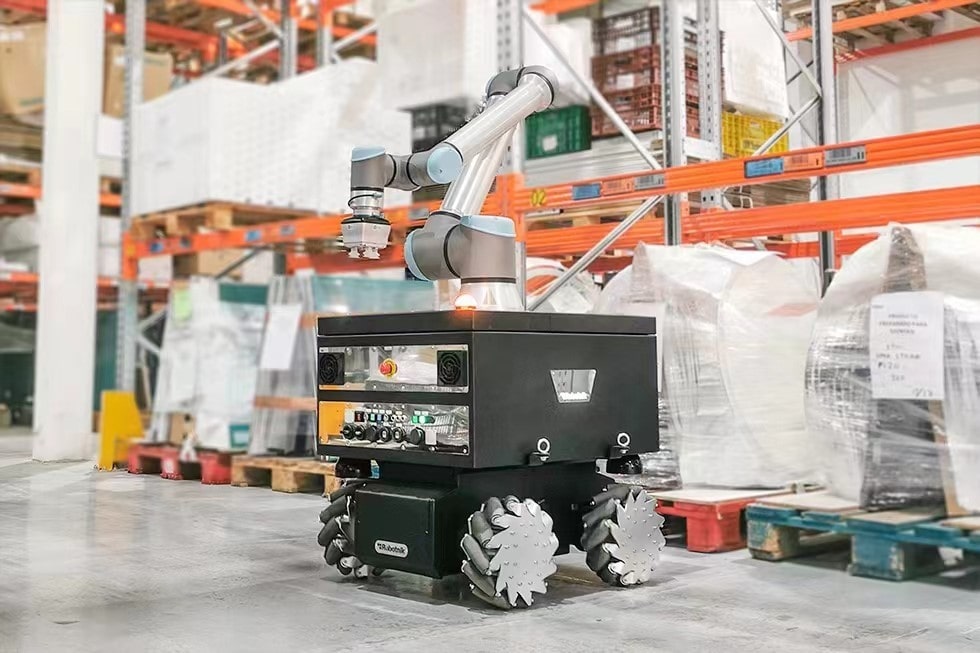

Warehouse Robots - Spain
